Blasting Machine

The Sequential Blasting Machine is an advanced device designed to control and execute precise, timed blasting sequences in mining, construction, and quarrying operations. By enabling accurate timing of multiple blasts, it improves safety, reduces vibrations, and enhances the efficiency of rock fragmentation. Widely used in modern blasting applications, this machine supports better control over blast patterns and helps minimize environmental impact.

Single Blasting Machine :

A Single Blasting Machine is designed to initiate one blasting circuit at a time. It provides reliable and simultaneous detonation for a single group of electric detonators, making it ideal for small to medium-scale blasting operations where simplicity and safety are essential.

Multi Blasting Machine :

A Multi Blasting Machine is capable of firing multiple blasting circuits independently. This type allows precise control and sequential or selective detonations, making it suitable for large-scale quarrying, mining, and tunneling projects that require advanced blasting patterns and higher operational efficiency.

DS-039S

3-level multi blasting machine.

3-circuit, DC 450V, 9 Joules, 175 Ohm, 12V 5A rechargeable bettery, built-in recharger.

DS-069S

6-level multi blasting machine.

6-circuit, DC 450V, 9 Joules, 175 Ohm, 12V 5A rechargeable bettery, built-in recharger.

DS-109S

10-level multi blasting machine.

10-circuit, DC 450V, 9 Joules, 175 Ohm, 12V 5A rechargeable bettery, built-in recharger.

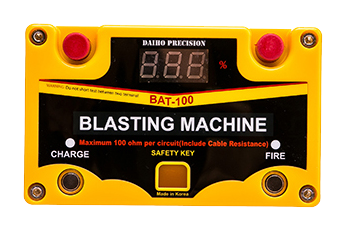

BAT Series

DC 1450 V ± 5%, DRY BAttery

BAT-100 : 100 ohm, 11 Joule, 15㎌

BAT-200 : 200 ohm, 15 Joule, 15㎌

BAT-300 : 300 ohm, 32 Joule, 30㎌

BAT-500 : 500 ohm, 47 Joule, 48㎌

BAT-700 : 700 ohm, 65 Joule, 60㎌

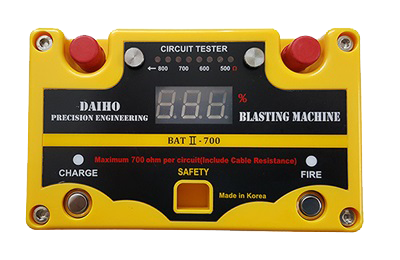

BAT II Series / Built-in Circuit Tester

DC 1450 V ± 5%, DRY BAttery

BAT II-100 : 100 ohm, 11 Joule, 15 ㎌

BAT II-200 : 200 ohm, 15 Joule, 15 ㎌

BAT II-300 : 300 ohm, 32 Joule, 30 ㎌

BAT II-500 : 500 ohm, 47 Joule, 48 ㎌

BAT II-700 : 700 ohm, 65 Joule, 60 ㎌

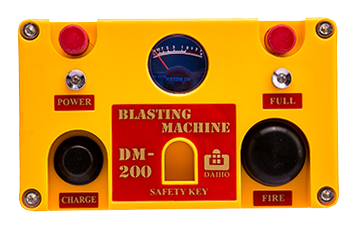

DM Series

Electric Blasting Machine, DC 1300-1500 V ± 5%, DC 6 V(1.5V X 4)

DM-200 : 200 ohm, 12 Joule, 15 ㎌, DC 1300 V ± 5%

DM-300 : 300 ohm, 22 Joule, 30 ㎌, DC 1500 V ± 5%

DM-500 : 500 ohm, 45 Joule, 48 ㎌, DC 1500 V ± 5%

DS Series(Single)

DC 1450 V ± 5%

DS-1000 : 1000 ohm, 125 Joule, 120㎌

Blasting Adapter

Starter + Blasting Adapter

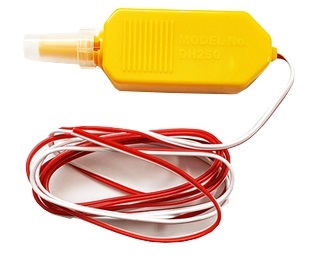

DH-250(Blasting Adapter)

OHM Tester

Digital OHM Tester

DT-R500 (Digital OHM Tester)

Continuity Tester

Continuity Tester

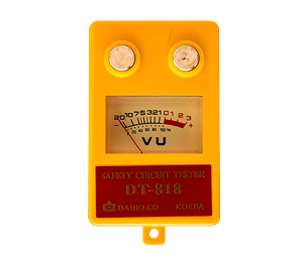

DT818(Continuity Tester)

Current Tester

Digital Current Tester

DT-890 (Digital Current Tester)

Key Difference :

Single : Fires one circuit; simple, economical, and suitable for standard blasting tasks.

Multi : Controls several circuits; enables complex or staged blasting sequences for demanding operations.

Compatible with a wide range of accessories and consumables, the Sequential Blasting Machine ensures efficient and reliable blasting control in any work environment.
